Vas karikacsillár gyertya formájú LED-fényforrásokkal, 66–185 cm

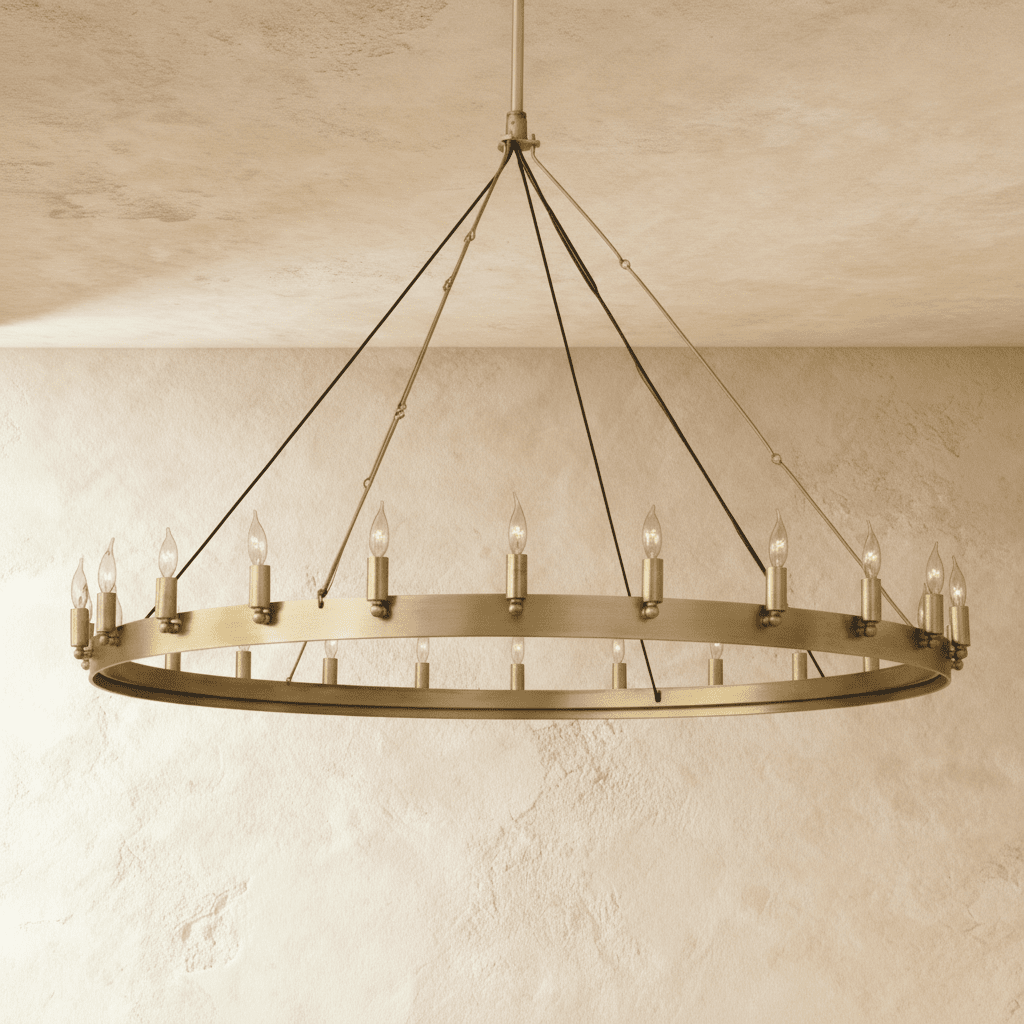

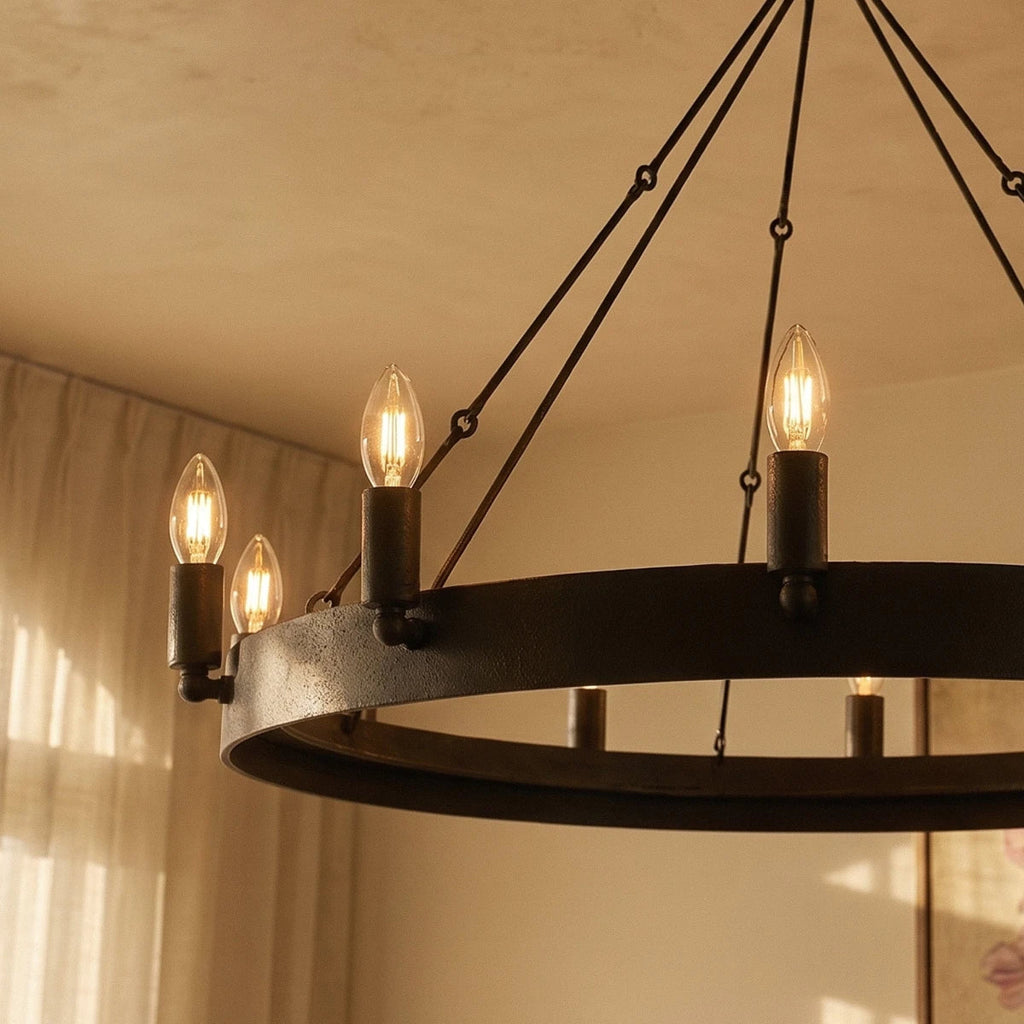

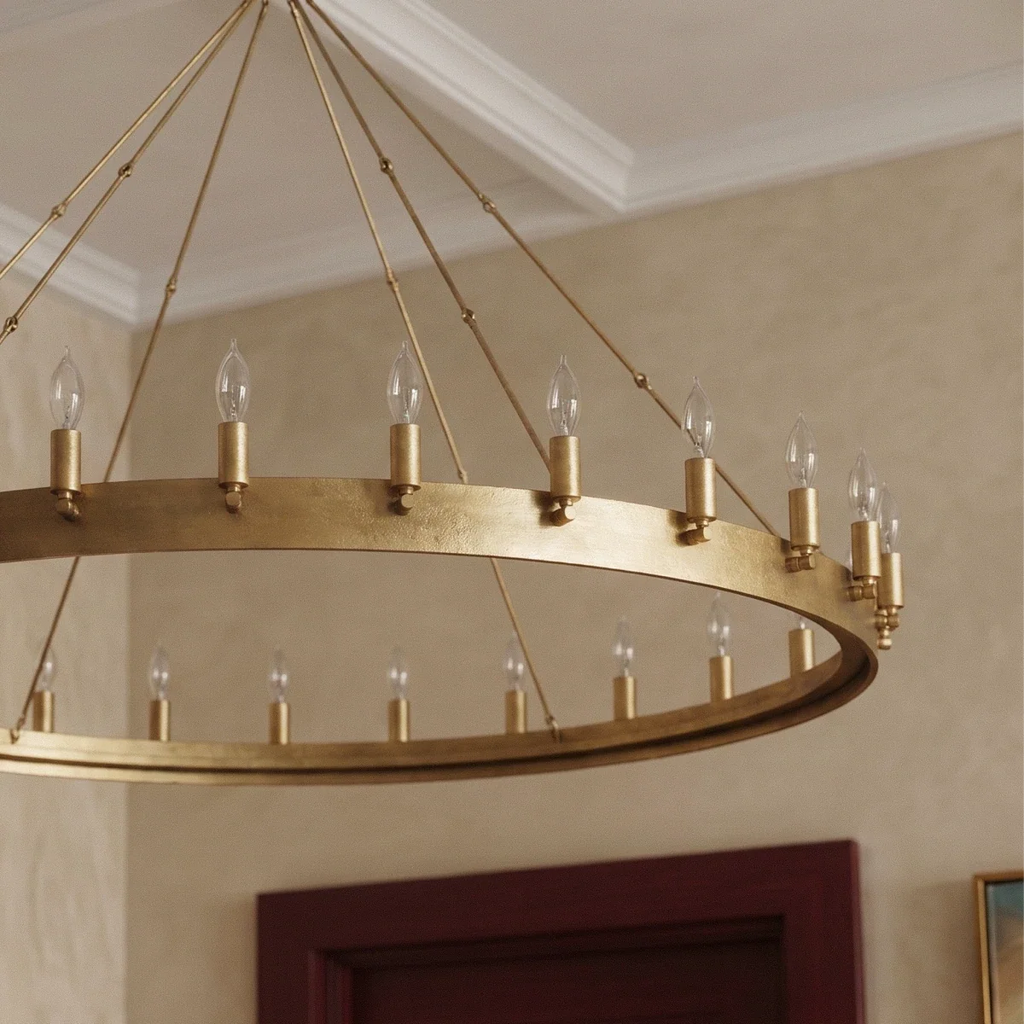

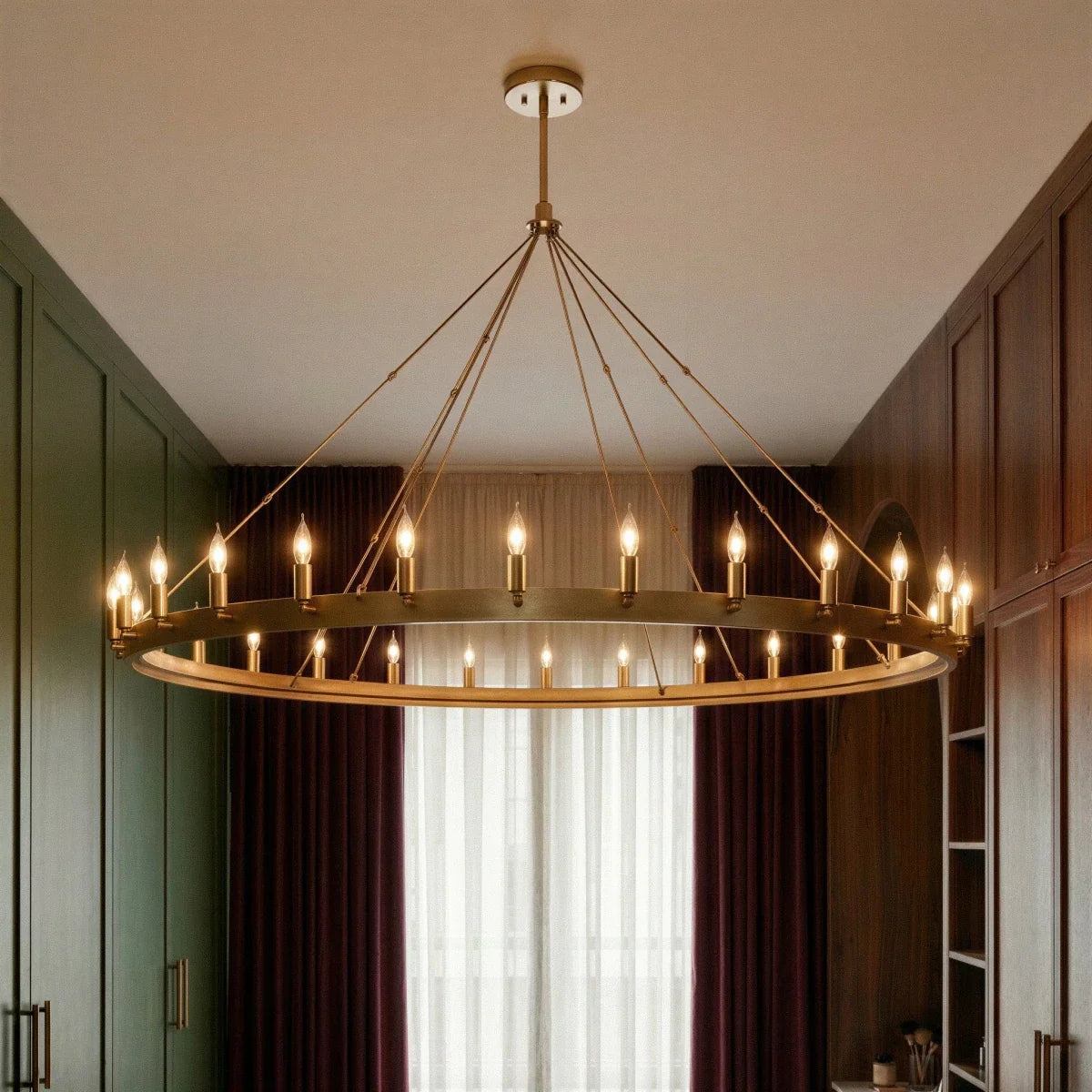

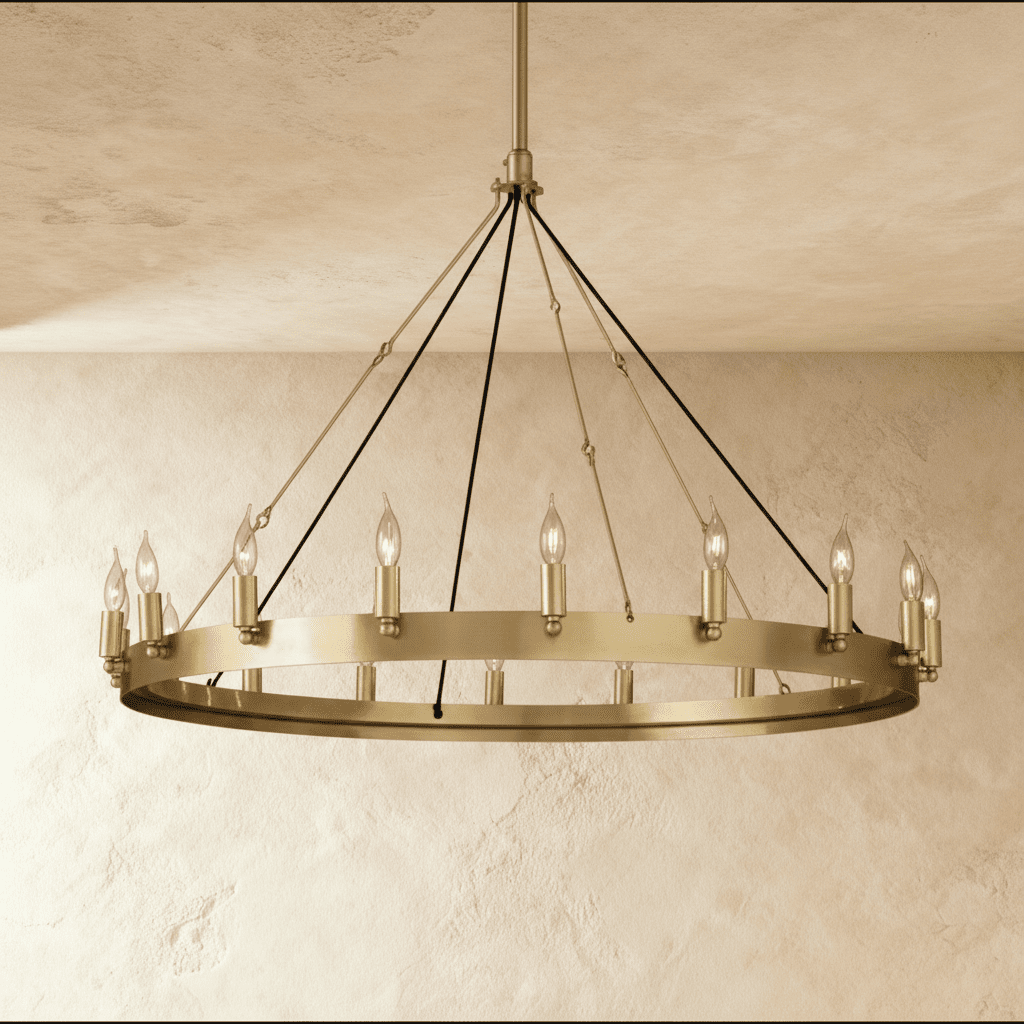

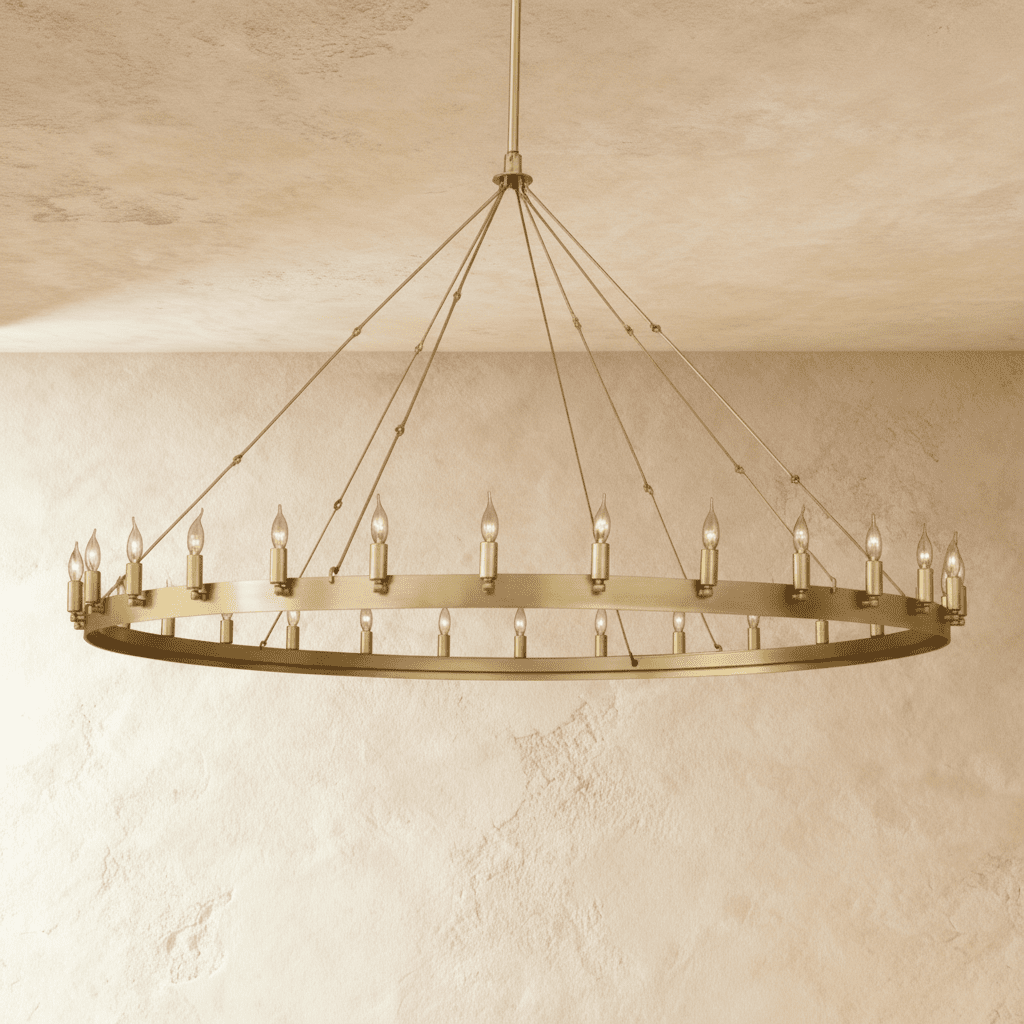

A flat iron band forms the ring of this chandelier, with candle-style bulbs spaced evenly around it and a stem and fine rods above. The LED bulbs are included, replaceable and Warm White at 3000 K.

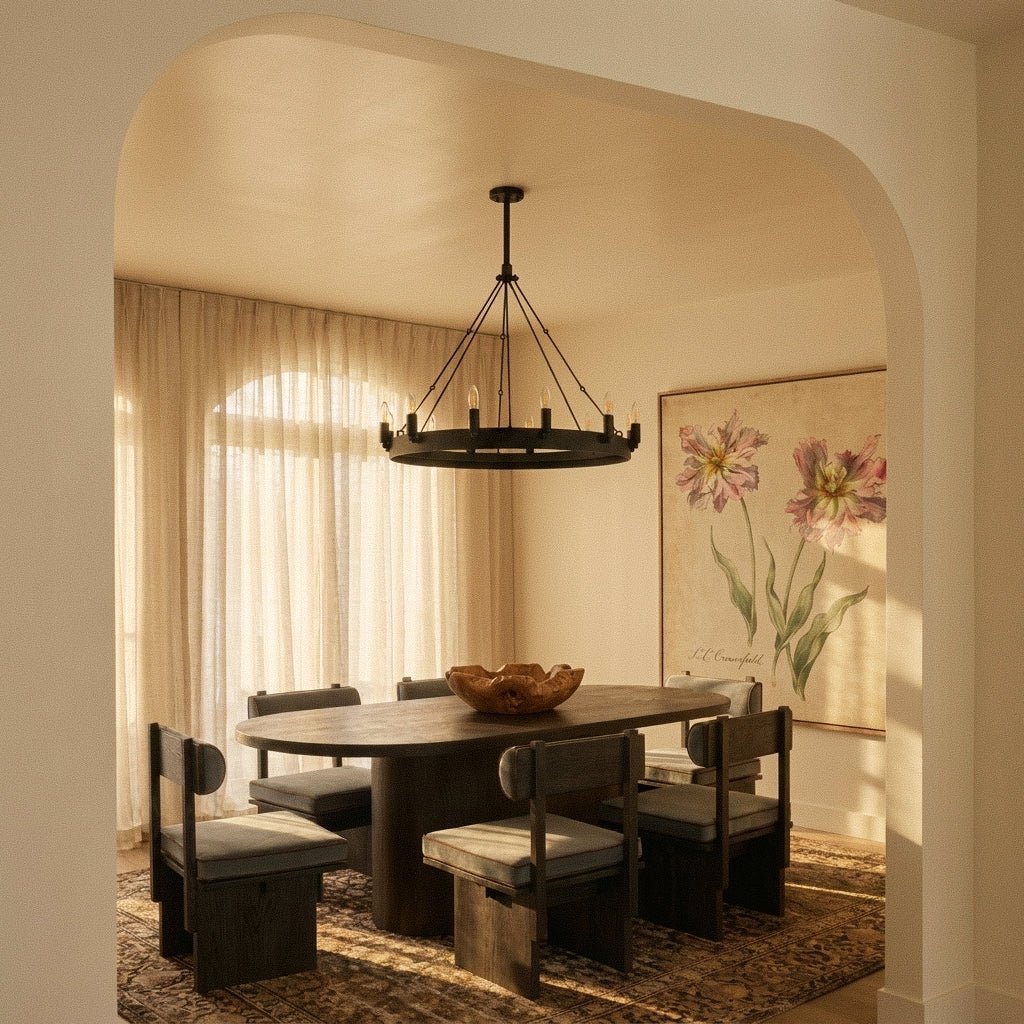

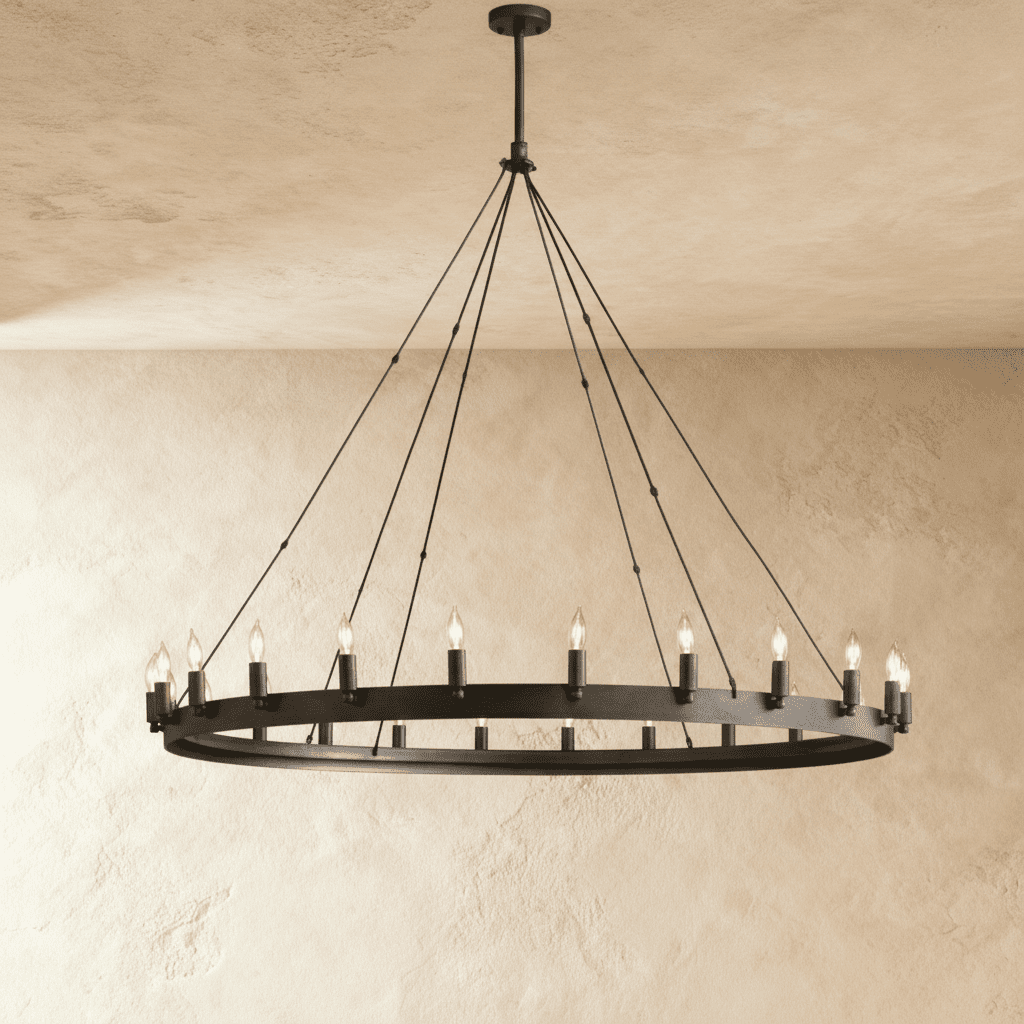

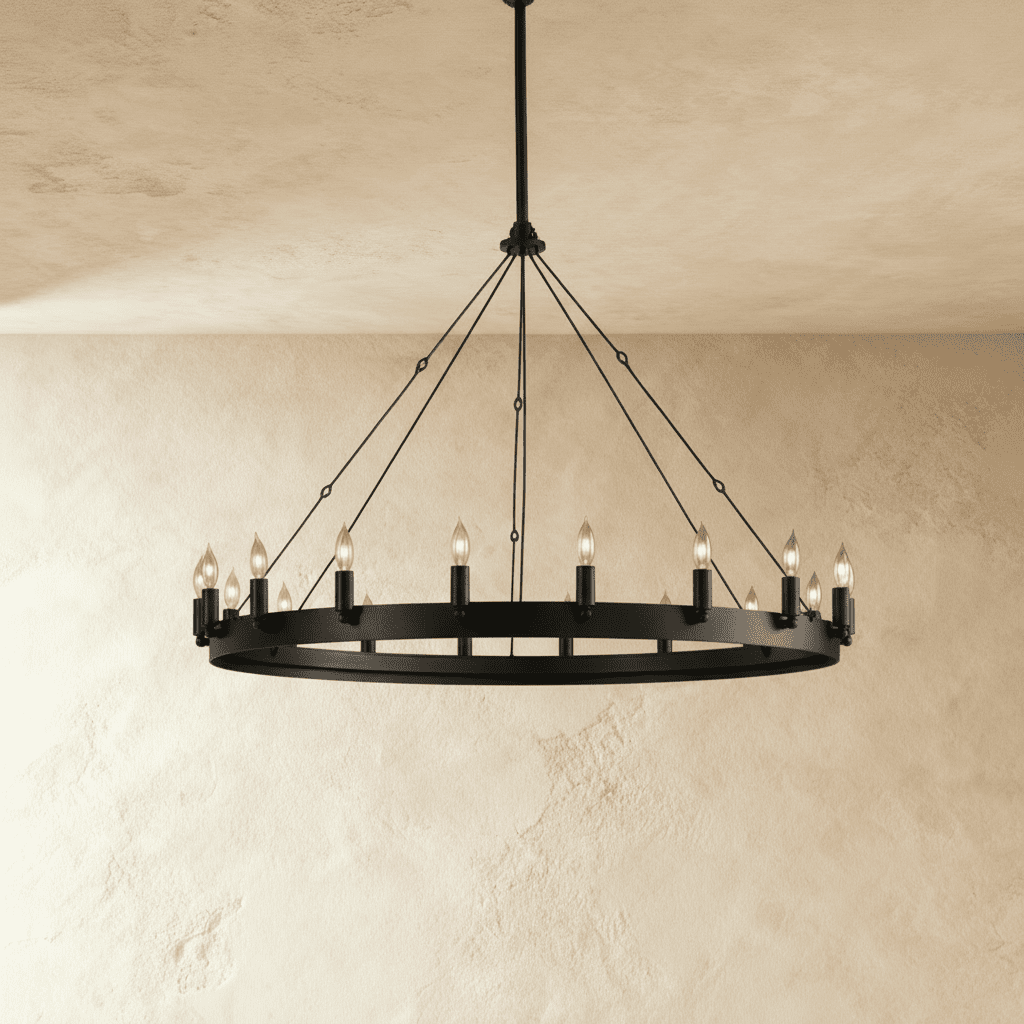

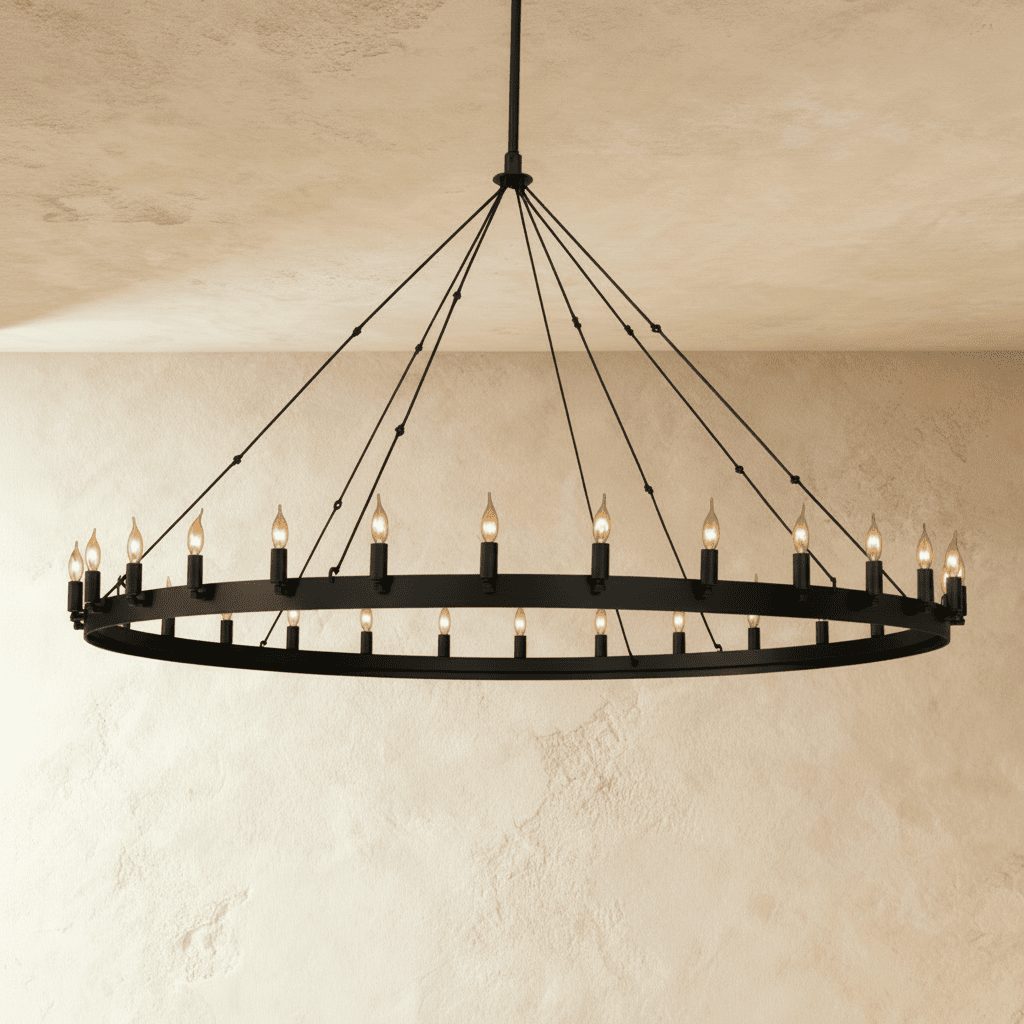

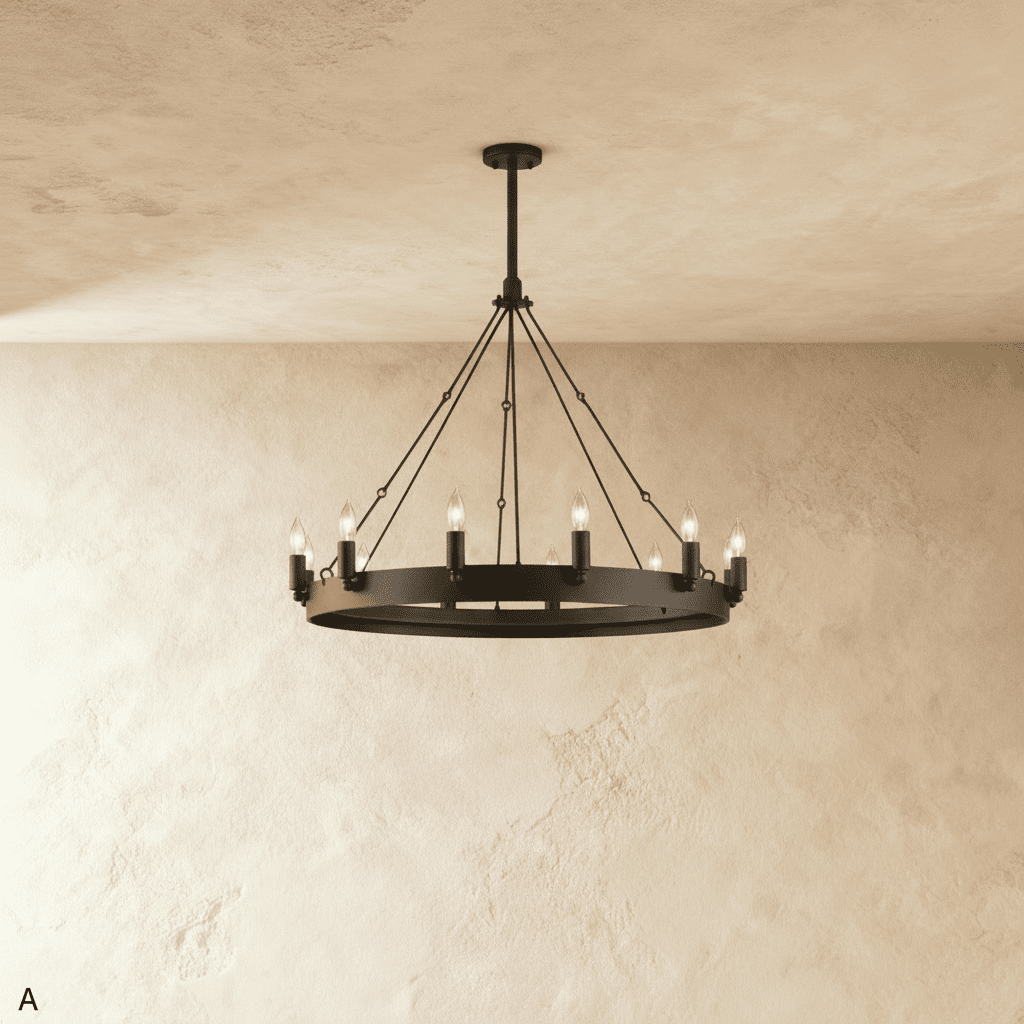

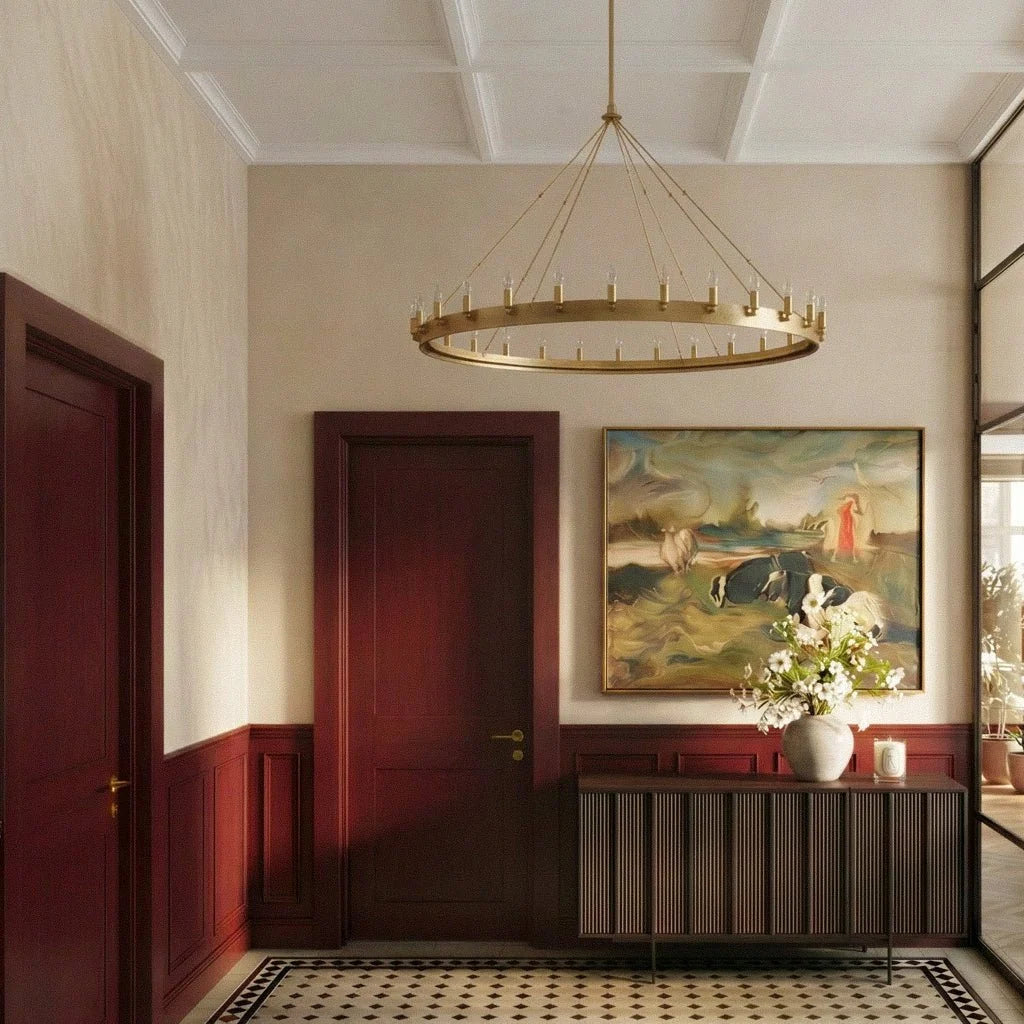

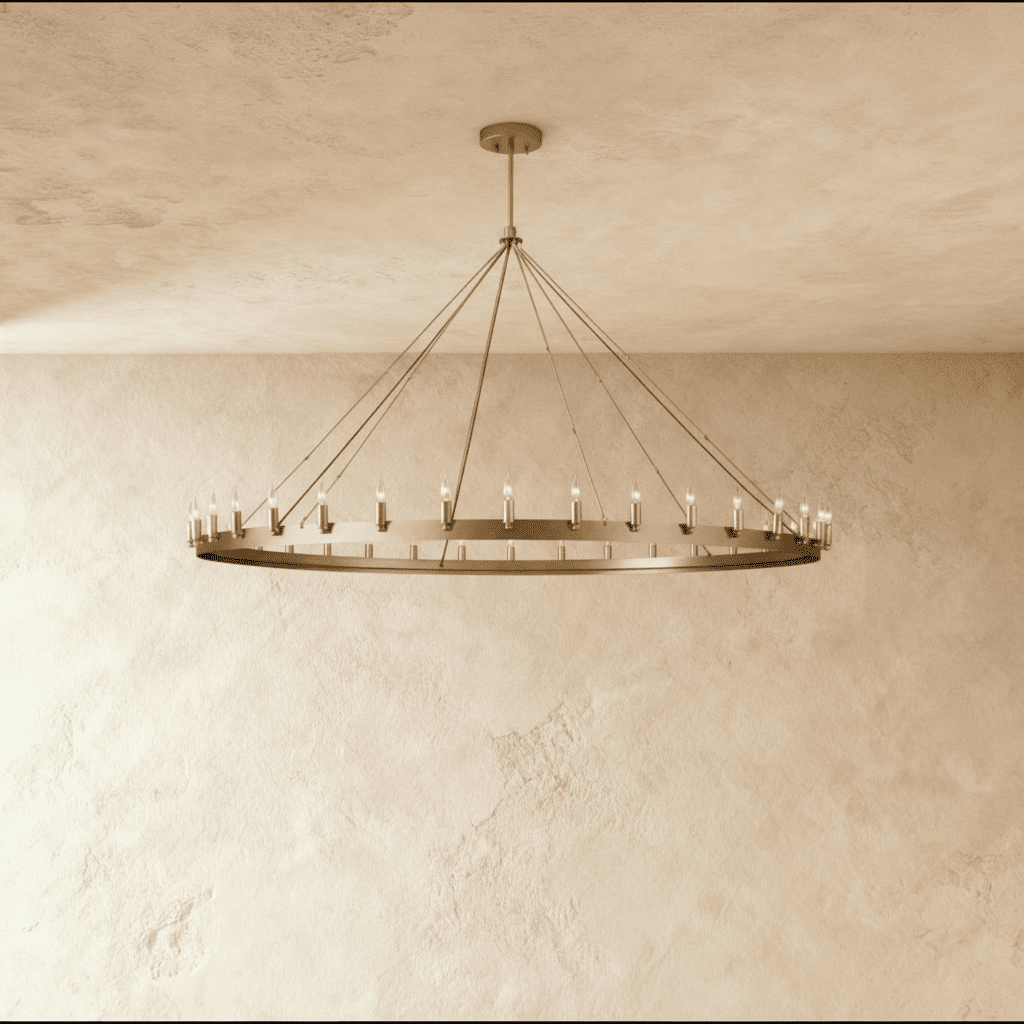

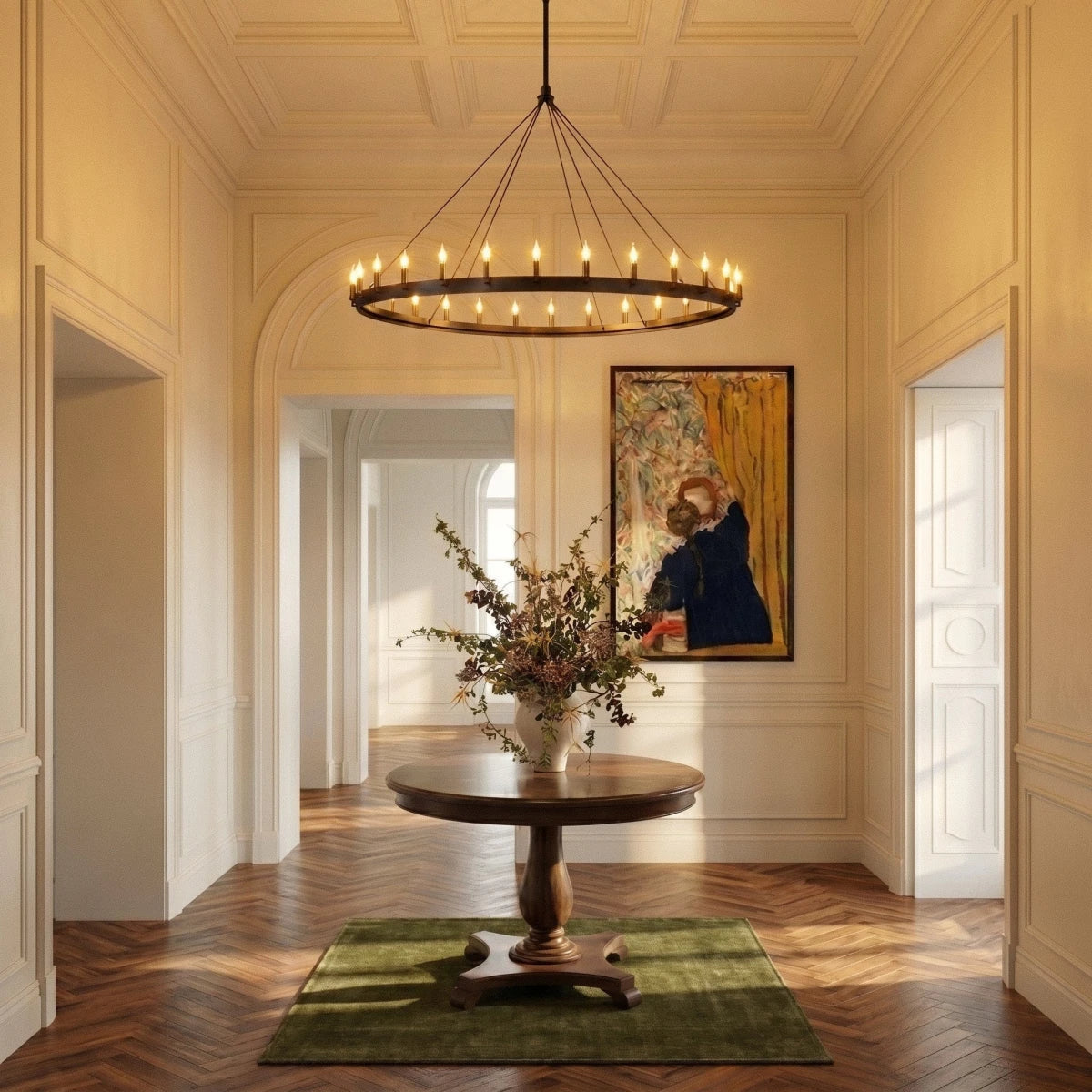

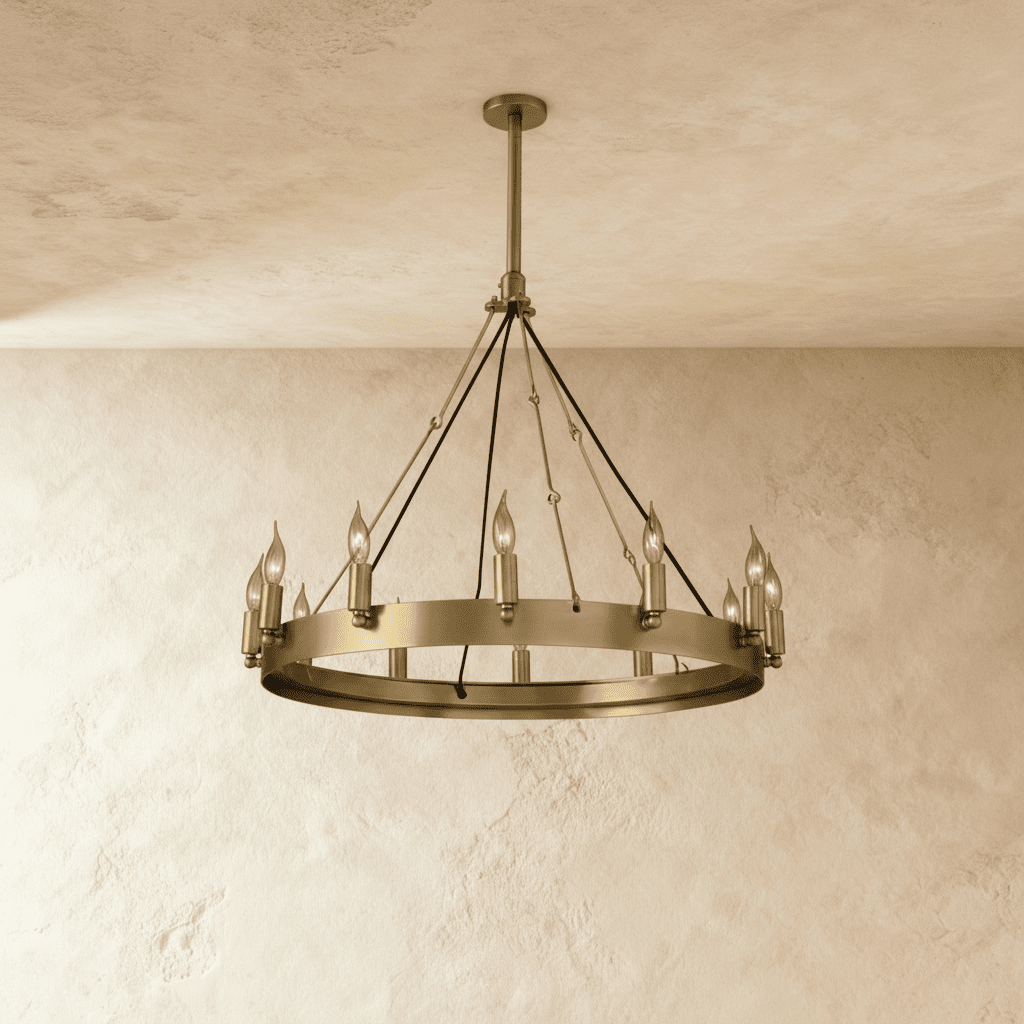

Choose 12, 18, 24, 28 or 32 heads, from 66 to 185 cm (26–72.8″) across, in Vintage Brass or Matte Black. It hangs on a pipe of up to 50 cm (19.7″) and wires into the ceiling supply, over a dining table or in a hallway.

This fitting hangs from a ceiling outlet box and is wired into your mains supply. Work out your hanging height before you connect anything - it is far easier to set the drop with the wiring still loose than to redo it afterwards.

Before you start

• Mounting: the fitting secures to a standard ceiling outlet box. The bracket and fixings are in the box.
• Weight: check that your outlet box and ceiling can carry the fitting. Weights are listed in the Product Specifications above. A heavy chandelier may need a brace fitted between the joists.
• Hanging height: the supplied cord, chain or rod can be shortened. Over a dining table, a drop that leaves roughly 75 to 90 cm between the table top and the bottom of the shade suits most rooms.
• Ceiling type: every model suits a flat ceiling. Sloped-ceiling compatibility is stated per product in the Product Specifications above.
• Power: these fittings are hardwired. They do not plug into a socket.
• Dimming: models with a replaceable bulb can usually be dimmed with a compatible dimmer. Integrated LED models generally cannot.

Tools you may need

• Screwdriver
• Voltage tester
• Wire strippers
• Wire nuts or terminal connectors (supplied)
• Step ladder, and a second person for anything heavy or wide
• Drill, if you are fitting a new outlet box or bracing the ceiling

Installation

1. Switch off the power

Turn the lighting circuit off at the consumer unit or breaker panel - the wall switch is not enough. Test at the ceiling outlet with a voltage tester and confirm the wires are dead.

2. Fit the mounting bracket

Screw the supplied bracket to the ceiling outlet box with the screws provided. Tighten evenly and check that it sits flat and square; a bracket that is not level will show in the finished hang.

3. Set the hanging height

Adjust the cord, chain or rod to the drop you want before you make any electrical connection. Lock the length using the canopy adjuster or the grip inside the canopy. Where a cord is shortened, coil the surplus neatly inside the canopy rather than cutting it - that keeps the height adjustable later.

4. Connect the wiring

• Live to live: black, brown, or the terminal marked L
• Neutral to neutral: white, blue, or the terminal marked N
• Earth to earth: green, green-and-yellow, or bare, to the earth terminal or screw

Secure each connection with a connector and press the wiring gently up into the box. Nothing should be trapped between the canopy and the ceiling when you close it.

5. Fix the fitting to the bracket

Lift the canopy or backplate onto the bracket and fasten it with the screws or decorative caps supplied. Work up to a firm fit rather than forcing it - decorative caps and plated threads strip easily.

6. Fit the bulbs

Fit the bulb type and wattage listed in the Product Specifications above. Where several sockets share one shade, use identical bulbs so the colour and brightness match across the fitting.

7. Restore power and test

Switch the circuit back on and test the light, including the dimmer if you have fitted one. Isolate the power again before re-opening anything.

Important tips

• Follow the wiring rules that apply where you live, and use a qualified electrician for high ceilings, sloped mounts or anything you are unsure of.
• Have someone hold a wide or heavy fitting while you make the connections. Do not let it hang on its wiring at any point.
• Clean glass and crystal with a dry, soft cloth. Do not spray cleaner onto a fitting that is wired in.
• Do not over-tighten decorative parts: they are finished, not structural.

If anything about the fitting, the drop or the wiring is unclear, email info@clerachic.com and a person will answer you.
